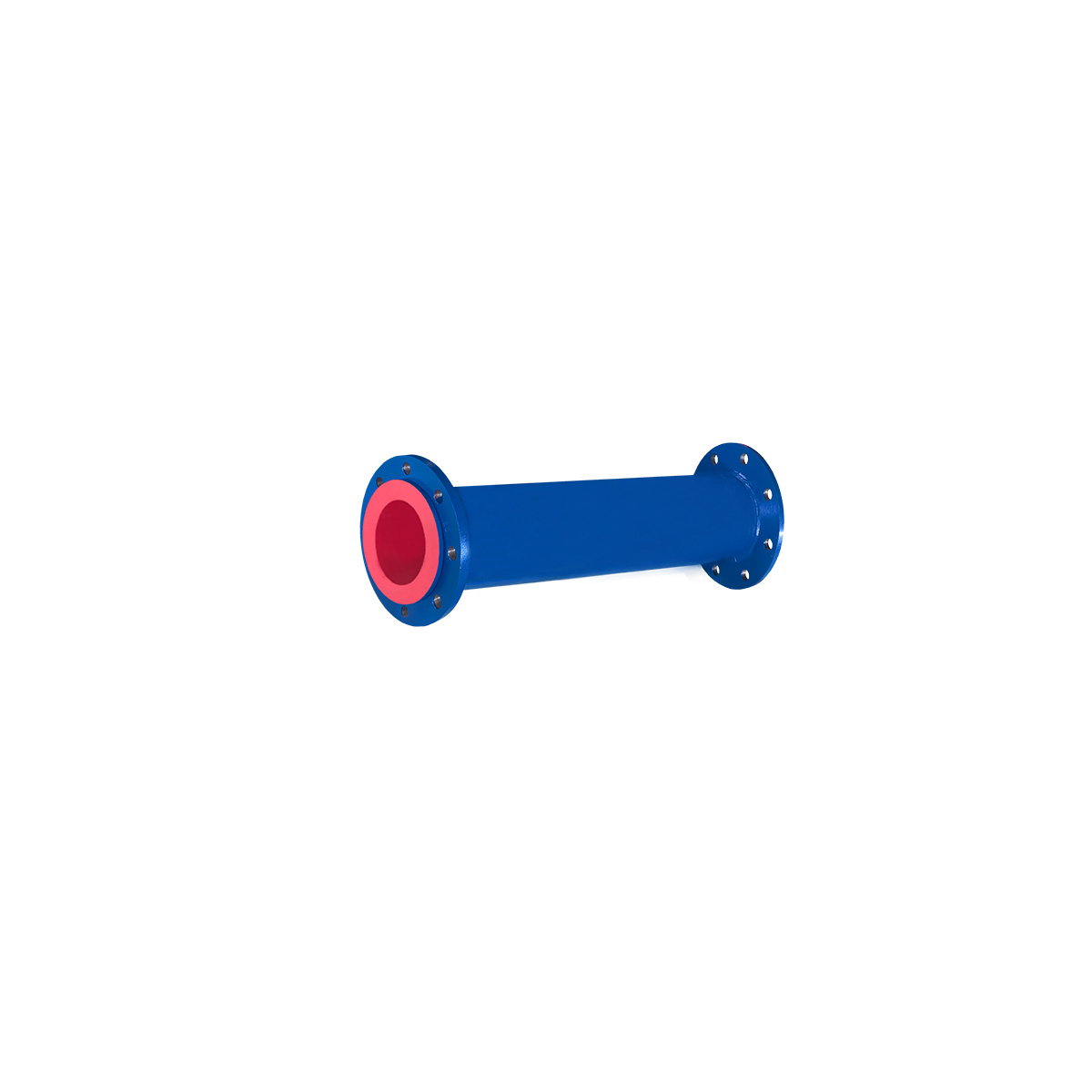

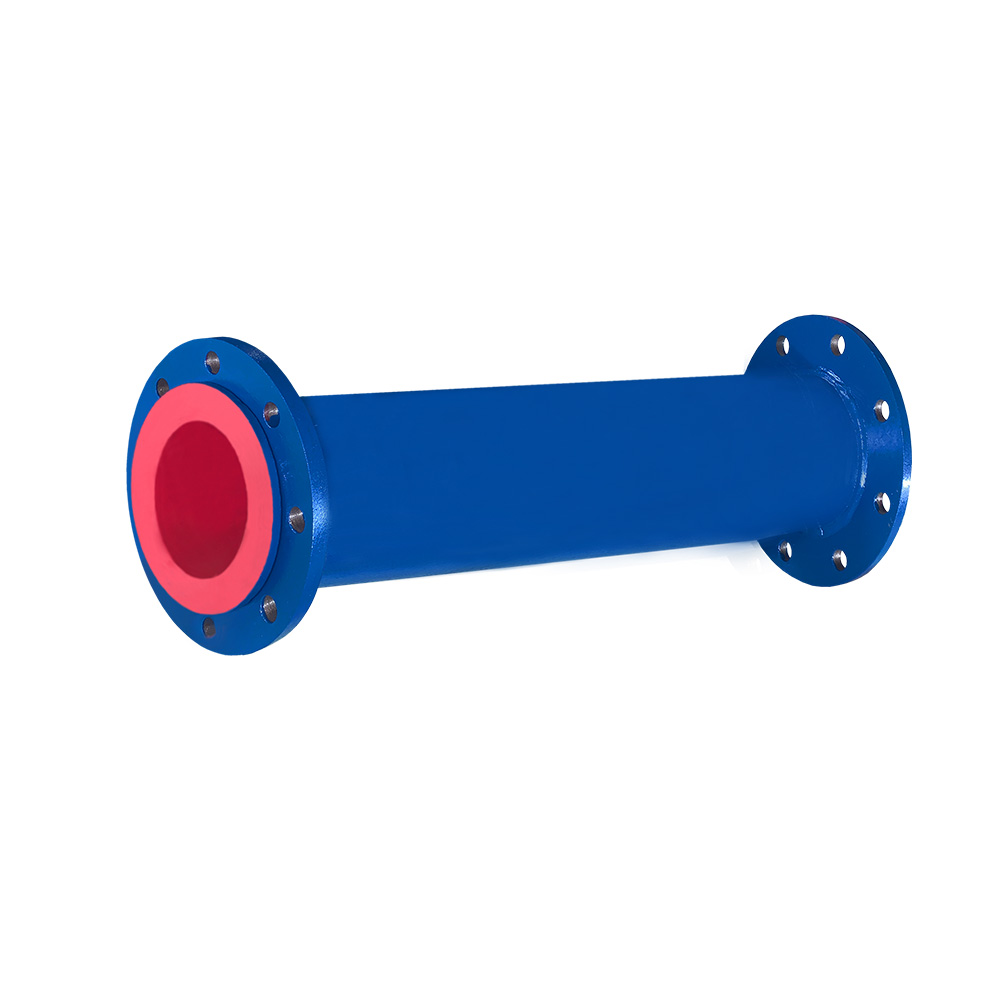

Rubber-lined straight pipe fittings

LAD® - Rubber-lined products - Rubber-lined pipe fittings Series

This product is a straight pipe fitting with a rubber lining made from LAD Company's special rubber, known for its high wear and corrosion resistance. The rubber lining is repairable, reducing maintenance costs.

BACK

Product Introduction
performance parameter

1.This product is a straight pipe fitting with a rubber lining made from LAD Company's special rubber, known for its high wear and corrosion resistance.

2.The rubber lining is repairable, reducing maintenance costs.

Valve body material	Riveted carbon steel
Rubber composition	Natural rubber (black rubber), LNT (special red rubber from LAD), EPDM,butyl rubber, etc.
connection method	flanged
Applicable temperature	-30℃～+90℃，The maximum operating temperature can reach up to 150℃
Applicable medium	Air, water, slurry, seawater, hot water, weak acids, etc.
Caliber range	DN80～DN400(Larger calibers are available for individual customization.)
Flange Standard	National standard, German standard, Japanese standard, American standard, Russian standard, etc.
